Vertical Mount Gpu - The Ultimate Guide to Aesthetic and Efficient GPU Setup!

In the world of custom PC builds, how your rig looks is just as important as how it performs. One growing trend in PC building is the vertical GPU mount. This setup not only showcases your graphics card’s design and lighting but can also impact airflow and system layout.

Whether you’re a gamer, content creator, or just love building clean and modern PCs, this detailed guide will walk you through everything you need to know about vertical mounting your GPU.

Table of Contents

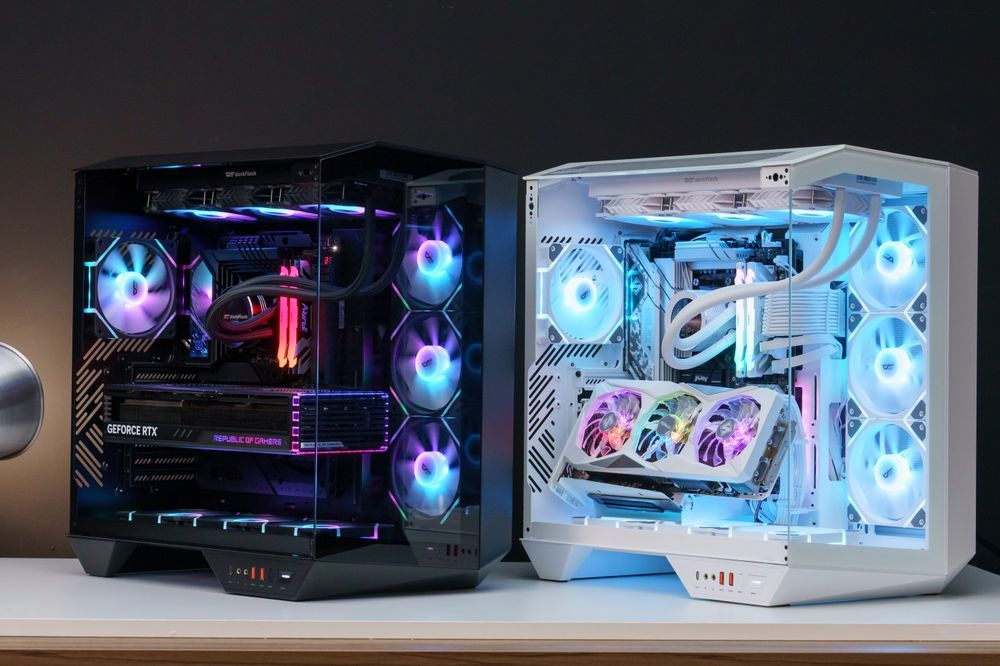

📌 What Is a Vertical GPU Mount?

Traditionally, GPUs are mounted horizontally — parallel to the motherboard. In a vertical mount, the GPU is installed perpendicular to the motherboard, so the front-facing side (with fans and RGB lighting) is clearly visible through your side panel (usually tempered glass).

This mounting style became popular due to:

The rise of tempered glass side panels
Stunning GPU designs with RGB lighting and custom coolers
A desire for a cleaner and more impressive build aesthetic

🛠️ How Vertical GPU Mounting Works

To vertically mount a GPU, you’ll need:

✅ 1. Vertical GPU Bracket or Mounting Kit

Some PC cases come with a built-in vertical slot, but if not, you can buy a bracket like:

Cooler Master Vertical GPU Holder V3
Phanteks Vertical GPU Mount
Lian Li O11D Vertical GPU Bracket

✅ 2. PCIe Riser Cable

A riser cable connects your GPU to your motherboard at an angle. It plugs into your PCIe x16 slot and allows the GPU to be installed away from the board.

Tip: Use a high-quality PCIe 4.0 riser for newer GPUs like the RTX 4080/4090 or RX 7000 series.

✅ 3. Compatible PC Case

Not all cases support vertical mounting. Some may block airflow or simply lack the physical slots. Make sure your case supports at least 3-slot or 4-slot vertical GPUs.

🎯 Why Mount Your GPU Vertically?

✅ 1. Showcase Your GPU

Most modern graphics cards feature stunning designs, RGB lighting, custom coolers, and branding. A vertical mount brings this to the forefront, literally.

✅ 2. Reduces GPU Sag

Heavy GPUs can sag over time, bending the PCIe slot and looking unattractive. Vertical mounts prevent sag completely by supporting the GPU vertically.

✅ 3. Improved Interior Cable Management

Vertical mounting can give you better routing space for cables and make your build look cleaner overall.

✅ 4. Better Compatibility with AIO Coolers

In tight cases, horizontal GPUs might interfere with front-mounted radiators or bottom fans. A vertical GPU gives more room in some setups.

🚫 Potential Drawbacks to Consider

While vertical mounting looks amazing, it’s not perfect. Here are some downsides:

❌ 1. Restricted Airflow

If your GPU fans are close to the side panel glass, they may not get enough fresh air, leading to higher temperatures.

❌ 2. Limited Space

Vertical GPUs take up more physical space inside your case. Some can block other PCIe slots or prevent installation of capture cards or sound cards.

❌ 3. Increased Cost

A vertical bracket and high-quality PCIe riser cable can cost an extra $30–$80 depending on the brand and version.

🔍 Ideal Use Cases for Vertical Mount GPUs

💻 Showpiece Gaming Builds – Highlight your RTX 4090 or RX 7900 XTX in full glory.
🎥 Content Creation Systems – Combine aesthetics with practical airflow and organization.
🎮 Streamer Setups – Make your setup look more professional and attractive on camera.
⚙️ Open-Air Test Benches – Easier GPU swapping and better airflow control.

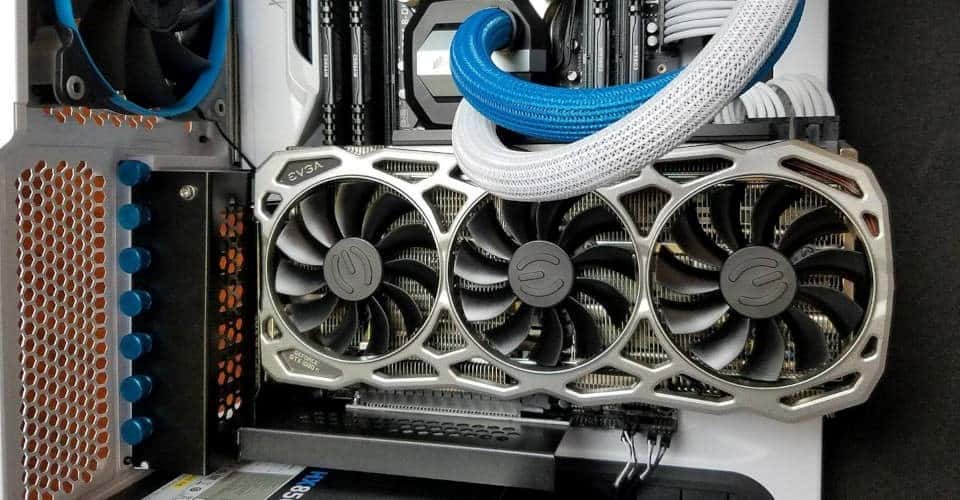

🔧 Installation Guide: How to Vertically Mount Your GPU

Here’s a quick step-by-step installation process:

Step 1: Check Case Compatibility

Confirm that your case supports vertical GPU mounting. Some may need a DIY mod or special adapter.

Step 2: Install Vertical Mount Bracket

Attach the vertical bracket or swap out the case’s PCIe slot covers as needed.

Step 3: Connect PCIe Riser Cable

Plug one end into the motherboard’s PCIe x16 slot and the other into the GPU.

Step 4: Mount Your GPU

Secure the GPU onto the vertical bracket and ensure it’s stable. Connect power cables properly.

Step 5: Test Airflow and Temperatures

Boot your system and monitor temperatures under load. Adjust fan curves or case airflow if temps are high.

💡 Pro Tips for Vertical Mounting Success

Use cases with at least 7 slots for better GPU clearance
Leave 2–3 cm of space between GPU and glass panel if possible
Position intake fans at the bottom or side for optimal airflow
Use custom GPU fan curves to control temps during gaming

📈 Does Vertical Mounting Improve Performance?

Short answer: No. Vertical mounting has no direct effect on FPS or GPU rendering speed. However, by improving airflow and reducing sag, it can help your GPU run cooler and more consistently, especially during long sessions.

In some cases, better cooling means higher sustained boost clocks, which can lead to slightly better real-world performance.

🔌 Best Cases That Support Vertical GPU Mounting

Here are some popular mid and full-tower cases that support vertical GPU setups:

Case Model	Vertical Mount Support	Size
Lian Li O11 Dynamic XL	Yes (built-in)	Full Tower
NZXT H9 Flow	Yes (w/ riser)	Mid Tower
Cooler Master HAF 700	Yes	Full Tower
Corsair 5000D Airflow	Yes (w/ bracket)	Mid Tower
Fractal Design Meshify 2	Yes (w/ upgrade kit)	Mid Tower

💰 Cost Breakdown of Vertical Mounting

Component	Average Price
Vertical Bracket	$20–$40
PCIe Riser Cable	$25–$60
Compatible Case (if needed)	Varies

Overall, expect to spend $50–$100 extra to set up a vertical GPU mount.

Frequently Asked Questions

Q1: Can I mount a GPU vertically in any PC case?

A: No. Your case must have vertical slots or be modified with a bracket.

Q2: Does a vertical GPU run hotter?

A: Sometimes — especially if airflow is blocked by the glass panel. Proper case fans help reduce this.

Q3: Is vertical mounting safe for daily use?

A: Yes, as long as it’s installed securely and temperatures are under control.

Q4: Will I lose PCIe bandwidth using a riser cable?

A: No, if you use a good quality PCIe 4.0 cable with a compatible motherboard and GPU.

Q5: Does vertical mounting increase gaming performance?

A: No, but it helps with aesthetics and can improve cooling in well-ventilated cases.

Final Verdict

If you’re building a custom PC and want it to look great, vertical GPU mounting is a good choice. It shows off your graphics card and gives your build a clean look. Just make sure your case has good airflow, you use a strong PCIe riser cable, and there’s enough space so your GPU doesn’t get too hot. With the right setup, your PC will look amazing and work smoothly.
